Part 1 of this 3 part series goes through the process of setting up a CI/CD pipeline leveraging CircleCI and ArgoCD. The overall architecture is depicted below:

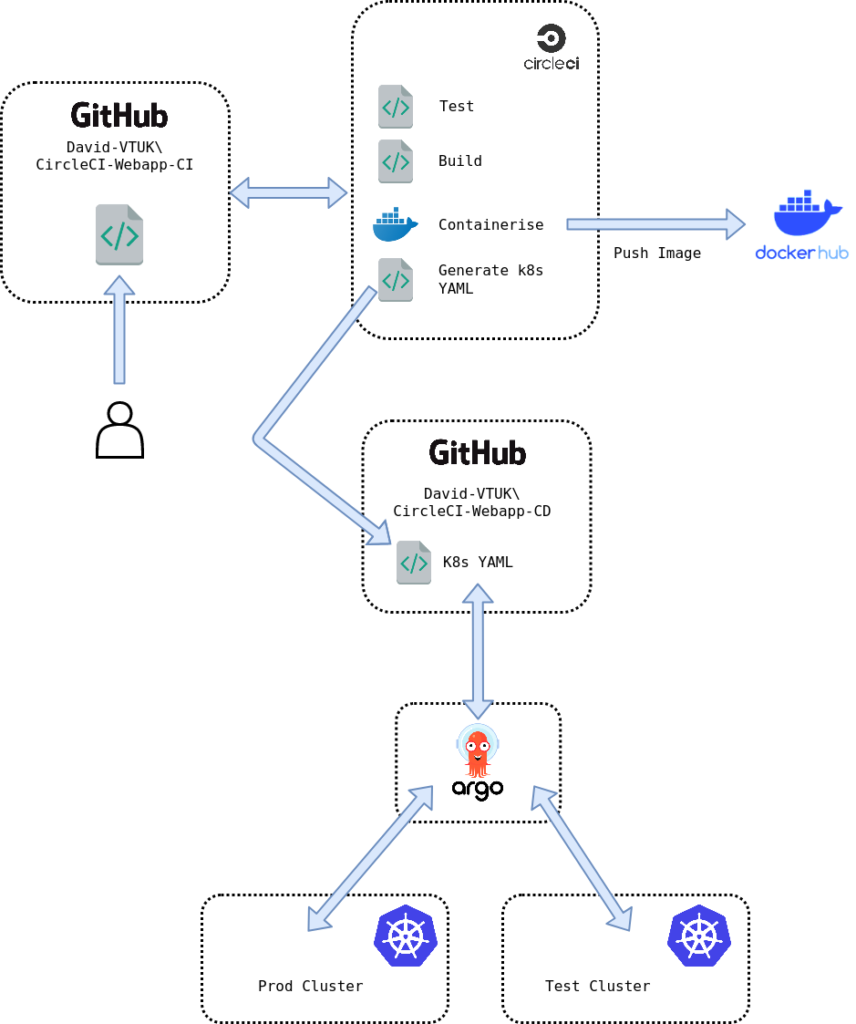

CI/CD Delivery Pipeline

The steps that will be implemented/accommodated are:

  1. Developer commits code to a GitHub repo that is monitored by CircleCI.
  2. CircleCI will perform the following tasks on all commits into the master branch:
    1. Test the code. In this example, we’re leveraging go test.
    2. If Testing completes successfully, build (compile) the code.
    3. If building the code completes successfully, construct a docker image to accommodate the service. Push this image to DockerHub
    4. If creating the Docker Image completes successfully, construct a basic deployment YAML file including the tag of the image that was recently uploaded.
    5. Commit the YAML file to a separate GitHub repo, monitored by ArgoCD.
  3. Argo CD will deploy the YAML manifest:
    1. Automatically into the Test cluster
    2. With manual approval into the Prod cluster

Part 2 – CircleCI Configuration

Part 3 – ArgoCD Configuration
