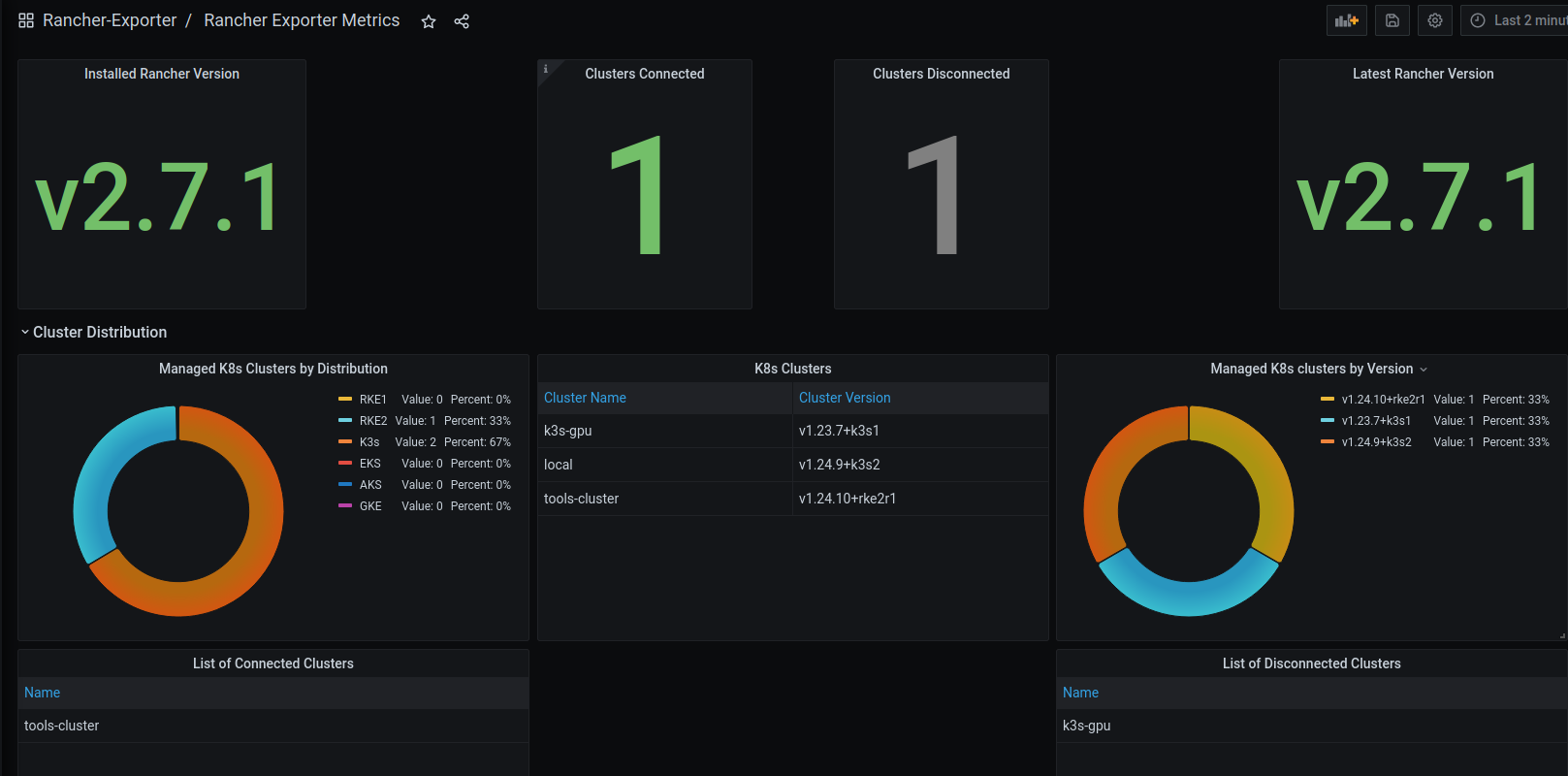

One of my side projects is developing and maintaining an unofficial Prometheus Exporter for Rancher. It exposes metrics pertaining to Rancher-specific resources including, but not limited to managed clusters, Kubernetes versions, and more. Below shows an example dashboard based on these metrics.
![overview-dashboard.png](https://github.com/David-VTUK/prometheus-rancher-exporter/blob/master/img/overview-dashboard.png?raw=true)
Incidentally, if you are using Rancher, I’d love to hear your thoughts/feedback.
Previous CI workflow

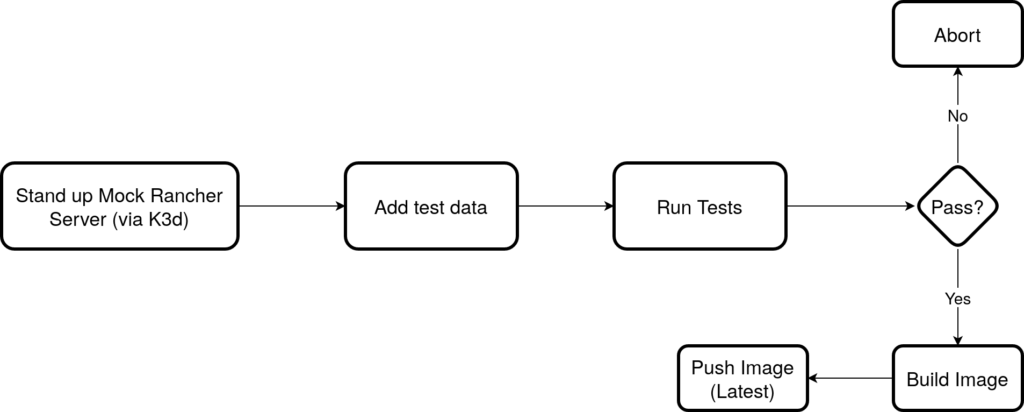

The flowchart below outlines the existing process. Whilst automated, pushing directly to latest
is bad practice.
![](https://virtualthoughts.blob.core.windows.net/uploads/2023/06/image-1024x412.png)
To improve this. Several additional steps were added. First of which acquires the latest, versioned image of the exporter and saves it to the $GITHUB_OUTPUT
environment
- name: Retrieve latest Docker image version
id: get_version
run: |
echo "image_version=$(curl -s "https://registry.hub.docker.com/v2/repositories/virtualthoughts/prometheus-rancher-exporter/tags/" | jq -r '.results[].name' | grep -v latest | sort -V | tail -n 1)" >> $GITHUB_OUTPUT
Referencing this, the next version can be generated based on MAJOR.MINOR.PATCH
. Incrementing the PATCH
version. In the future, this will be modified to add more flexibility to change MAJOR
and MINOR
versions.
- name: Increment version
id: increment_version
run: |
# Increment the retrieved version
echo "updated_version=$(echo "${{ steps.get_version.outputs.image_version }}" | awk -F. -v OFS=. '{$NF++;print}')" >> $GITHUB_OUTPUT
With the version generated, the subsequent step can tag and push both the incremented version, and latest.
- name: Build and push
uses: docker/build-push-action@v3
with:
context: .
push: true
tags: |
virtualthoughts/prometheus-rancher-exporter:${{ steps.increment_version.outputs.updated_version }}
virtualthoughts/prometheus-rancher-exporter:latest
Lastly, the Github action will also modify the YAML manifest file to reference the most recent, versioned image:
- name: Update Kubernetes YAML manifest
run: |
# Install yq
curl -sL https://github.com/mikefarah/yq/releases/latest/download/yq_linux_amd64 -o yq
chmod +x yq
sudo mv yq /usr/local/bin/
# Find and update the image tag in the YAML file
IMAGE_NAME="virtualthoughts/prometheus-rancher-exporter"
NEW_TAG="${{ steps.increment_version.outputs.updated_version }}"
OLD_TAG=$(yq eval '.spec.template.spec.containers[] | select(.name == "rancher-exporter").image' manifests/exporter.yaml | cut -d":" -f2)
NEW_IMAGE="${IMAGE_NAME}:${NEW_TAG}"
sed -i "s|${IMAGE_NAME}:${OLD_TAG}|${NEW_IMAGE}|" manifests/exporter.yaml

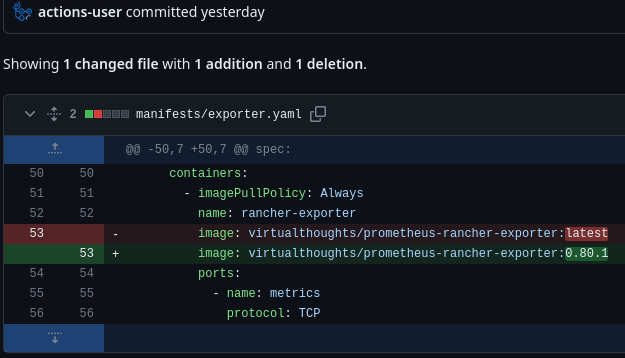

Which results in:
![](https://virtualthoughts.blob.core.windows.net/uploads/2023/06/image-647d8d713ab23.png)
