Using the NSX-T CNI with RKE2

July 4, 2022 / / 3 Comments

This post outlines the necessary steps to leverage the VMware NSX-T CNI with RKE2

1. Planning

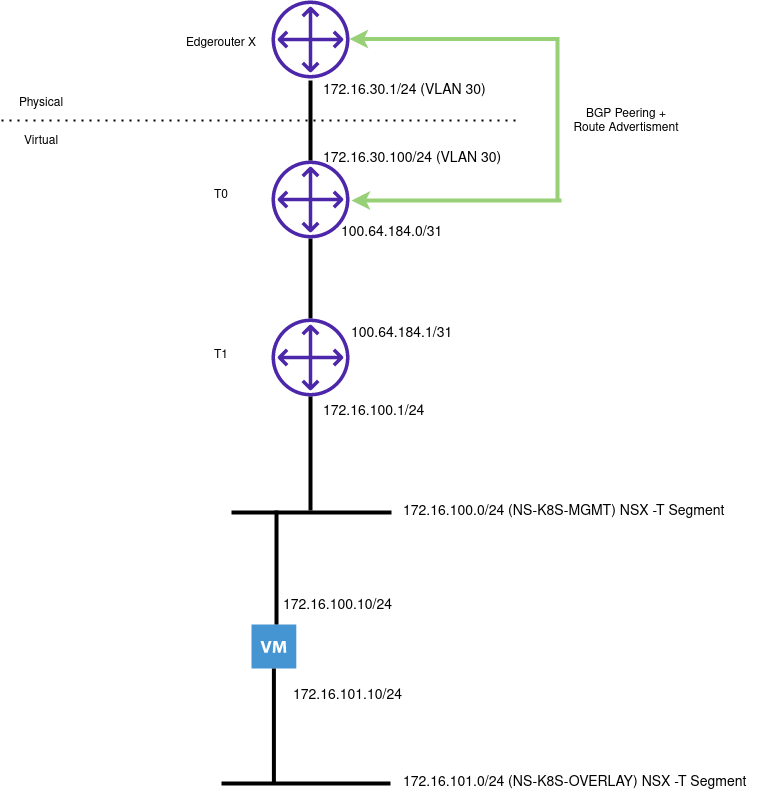

The following illustrates my Lab environment with a single node cluster:

General Considerations

If you have a new NSX-T environment, ensure you have (as a minimum) the following:

  • T0 Router
  • T1 Router
  • Edge Cluster
  • VLAN Transport Zone
  • Overlay Transport Zone
  • Route advertisement (BGP/OSPF) to the physical network

NSX Specific Considerations

  • A network segment (or vds port) for management traffic (NS-K8S-MGMT in this example)
  • A network segment for overlay traffic (NS-K8S-OVERLAY)

Management traffic should be put on a routed network
Overlay traffic does not have to be on a routed network

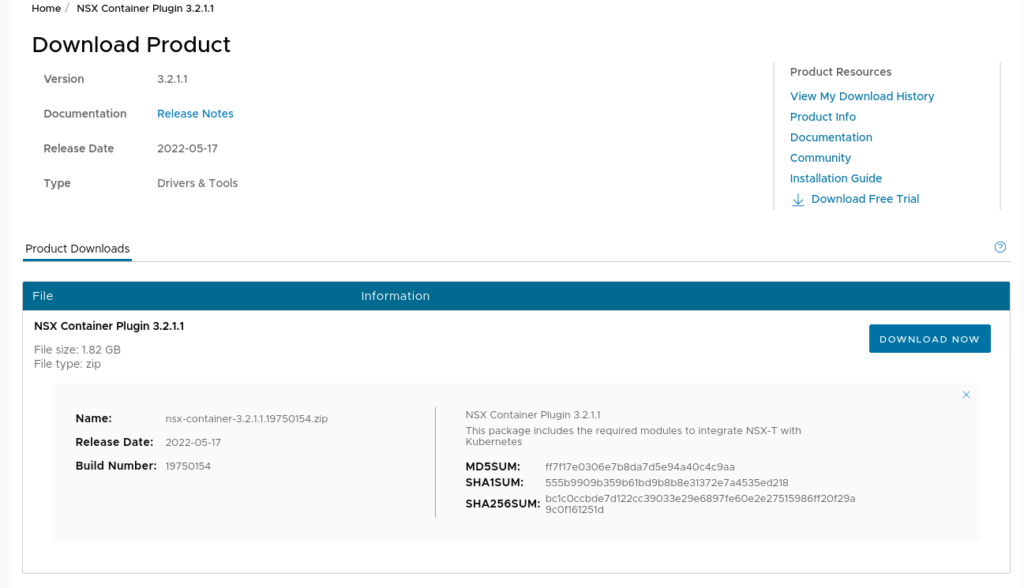

You will need to acquire and upload the ncp container image to a private repo:

This will contain the NCP image

2. Prepare NSX Objects

  • Create and retrieve the object ID’s for:

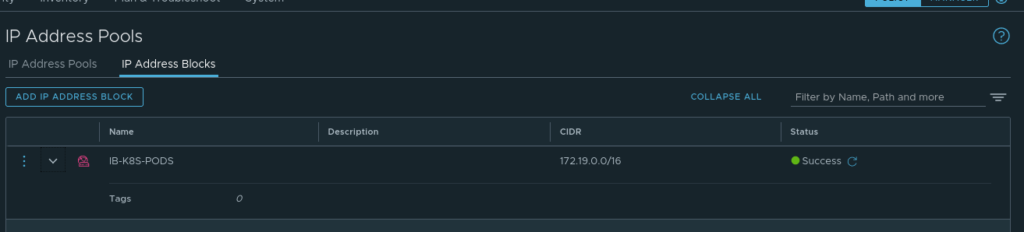

  • An IP Block for the Pods (this /16 will be divided into /24’s in our cluster)
  • An IP Pool for loadBalancer service types

3. Create VM

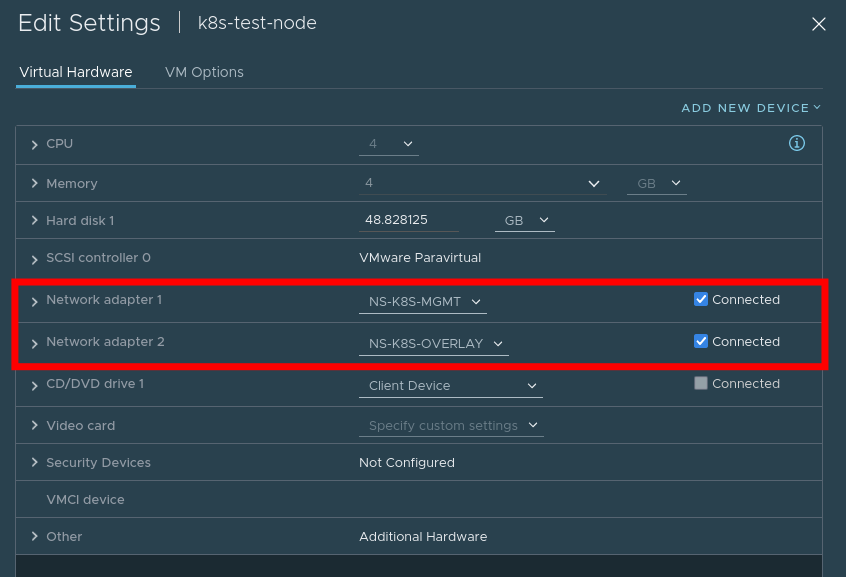

  • Create a VM with one nic attached to the Management network, and one attached to the Overlay network. Note, for ease you can configure NSX-T to provide DHCP services to both
  • Ensure Python is Installed (aka Python2)

4. Install RKE2

  • Create the following configuration file to instruct RKE2 not to auto-apply a CNI:
packerbuilt@k8s-test-node:~$ cat /etc/rancher/rke2/config.yaml
cni:
  - none
  • Install RKE2
curl -sfL https://get.rke2.io | sh -
systemctl enable rke2-server.service
systemctl start rke2-server.service
# Wait a bit
export KUBECONFIG=/etc/rancher/rke2/rke2.yaml PATH=$PATH:/var/lib/rancher/rke2/bin
kubectl get nodes
  • You will notice some pods are in pending state – this is normal as these reside outside of the host networking namespace and we have yet to install a CNI

5. Install additional CNI binaries

  • NSX-T also requires access to the portmap CNI binary. this can be acquired by:
wget https://github.com/containernetworking/plugins/releases/download/v1.1.1/cni-plugins-linux-amd64-v1.1.1.tgz
  • Extract the contents to /opt/cni/bin/

6. Tag the overlay network port on the VM

The NSX-T container plugin needs to identify the port used for container traffic. In the example above, this is the interface connection to our Overlay switch

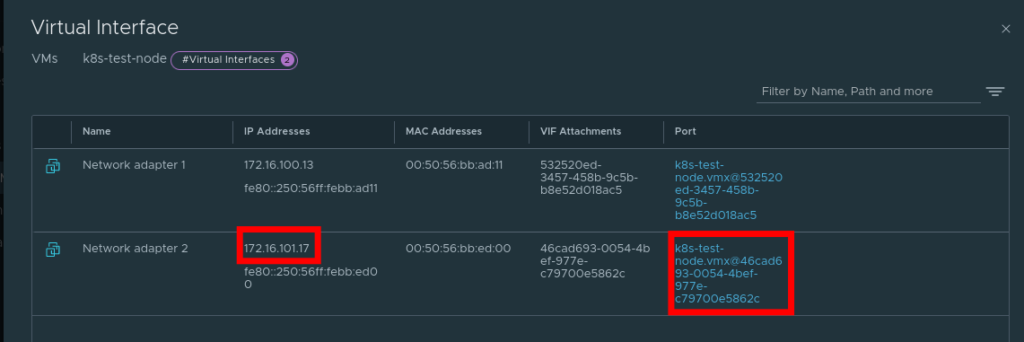

  • In NSX-T navigate to Inventory -> Virtual Machines -> Select the VM
  • Select the port that’s connected to the overlay switch

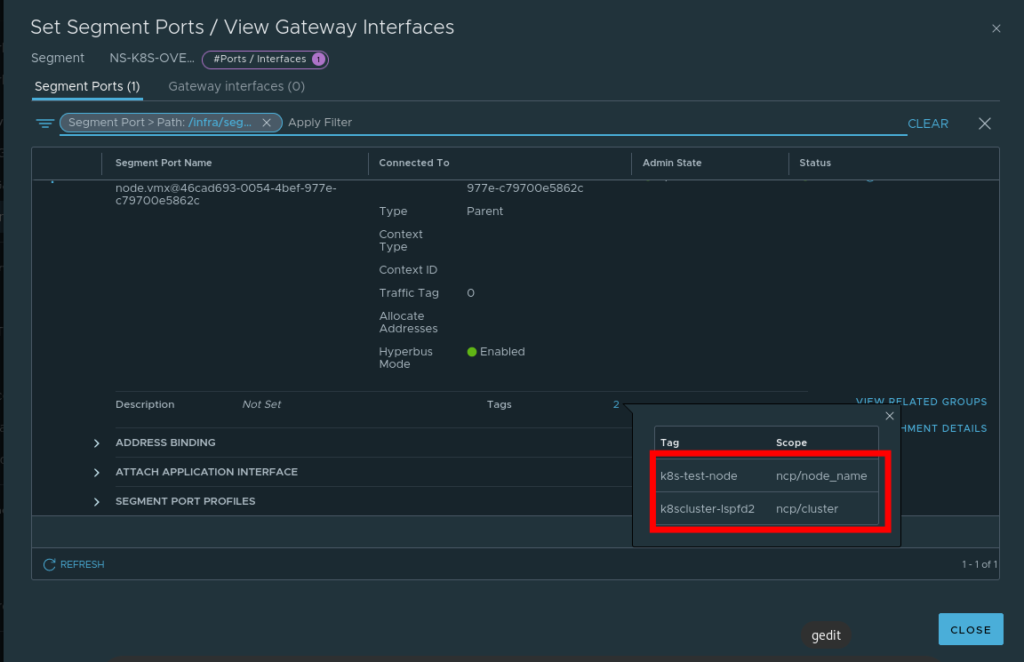

  • Add the tags as appropriate

7. Download the NCP operator files

  • git clone https://github.com/vmware/nsx-container-plugin-operator
  • Change directory – cd /deploy/kubernetes/

8. Change the Operator yaml

  • Operator.yaml – replace where the image resides in your environment. Example:
            - name: NCP_IMAGE
              value: "core.harbor.virtualthoughts.co.uk/library/nsx-ncp-ubuntu:latest"

9. Change the Configmap yaml file

Which values to change will depend on your deployment topology, but as an example:

@@ -11,7 +11,7 @@ data:

     # If set to true, the logging level will be set to DEBUG instead of the
     # default INFO level.
-    #debug = False
+    debug = True



@@ -52,10 +52,10 @@ data:
     [coe]

     # Container orchestrator adaptor to plug in.
-    #adaptor = kubernetes
+    adaptor = kubernetes

     # Specify cluster for adaptor.
-    #cluster = k8scluster
+    cluster = k8scluster-lspfd2

     # Log level for NCP modules (controllers, services, etc.). Ignored if debug
     # is True
@@ -111,10 +111,10 @@ data:
     [k8s]

     # Kubernetes API server IP address.
-    #apiserver_host_ip = <None>
+    apiserver_host_ip = 172.16.100.13

     # Kubernetes API server port.
-    #apiserver_host_port = <None>
+    apiserver_host_port = 6443

     # Full path of the Token file to use for authenticating with the k8s API
     # server.
@@ -129,7 +129,7 @@ data:
     # Specify whether ingress controllers are expected to be deployed in
     # hostnework mode or as regular pods externally accessed via NAT
     # Choices: hostnetwork nat
-    #ingress_mode = hostnetwork
+    ingress_mode = nat

     # Log level for the kubernetes adaptor. Ignored if debug is True
     # Choices: NOTSET DEBUG INFO WARNING ERROR CRITICAL
@@ -254,7 +254,7 @@ data:


     # The OVS uplink OpenFlow port where to apply the NAT rules to.
-    #ovs_uplink_port = <None>
+    ovs_uplink_port = ens224

     # Set this to True if you want to install and use the NSX-OVS kernel
     # module. If the host OS is supported, it will be installed by nsx-ncp-
@@ -318,8 +318,11 @@ data:
     # [<scheme>://]<ip_adress>[:<port>]
     # If scheme is not provided https is used. If port is not provided port 80
     # is used for http and port 443 for https.
-    #nsx_api_managers = []
-
+    nsx_api_managers = 172.16.10.43
+    nsx_api_user = admin
+    nsx_api_password = SuperSecretPassword123!
+    insecure = true
+
     # If True, skip fatal errors when no endpoint in the NSX management cluster
     # is available to serve a request, and retry the request instead
     #cluster_unavailable_retry = False
@@ -438,7 +441,7 @@ data:
     # support automatically creating the IP blocks. The definition is a comma
     # separated list: CIDR,CIDR,... Mixing different formats (e.g. UUID,CIDR)
     # is not supported.
-    #container_ip_blocks = []
+    container_ip_blocks = IB-K8S-PODS

     # Resource ID of the container ip blocks that will be used for creating
     # subnets for no-SNAT projects. If specified, no-SNAT projects will use
@@ -451,7 +454,7 @@ data:
     # creating the ip pools. The definition is a comma separated list:
     # CIDR,IP_1-IP_2,... Mixing different formats (e.g. UUID, CIDR&IP_Range) is
     # not supported.
-    #external_ip_pools = []
+    external_ip_pools = IP-K8S-LB



@@ -461,7 +464,7 @@ data:
     # Name or ID of the top-tier router for the container cluster network,
     # which could be either tier0 or tier1. If policy_nsxapi is enabled, should
     # be ID of a tier0/tier1 gateway.
-    #top_tier_router = <None>
+    top_tier_router = T0

     # Option to use single-tier router for the container cluster network
     #single_tier_topology = False
@@ -472,13 +475,13 @@ data:
     # policy_nsxapi is enabled, it also supports automatically creating the ip
     # pools. The definition is a comma separated list: CIDR,IP_1-IP_2,...
     # Mixing different formats (e.g. UUID, CIDR&IP_Range) is not supported.
-    #external_ip_pools_lb = []
+    #external_ip_pools_lb = IP-K8S-LB

     # Name or ID of the NSX overlay transport zone that will be used for
     # creating logical switches for container networking. It must refer to an
     # already existing resource on NSX and every transport node where VMs
     # hosting containers are deployed must be enabled on this transport zone
-    #overlay_tz = <None>
+    overlay_tz = nsx-overlay-transportzone


     # Resource ID of the lb service that can be attached by virtual servers
@@ -500,11 +503,11 @@ data:

     # Resource ID of the firewall section that will be used to create firewall
     # sections below this mark section
-    #top_firewall_section_marker = <None>
+    top_firewall_section_marker = 0eee3920-1584-4c54-9724-4dd8e1245378

     # Resource ID of the firewall section that will be used to create firewall
     # sections above this mark section
-    #bottom_firewall_section_marker = <None>
+    bottom_firewall_section_marker = 3d67b13c-294e-4470-95db-7376cc0ee079



@@ -523,7 +526,7 @@ data:

     # Edge cluster ID needed when creating Tier1 router for loadbalancer
     # service. Information could be retrieved from Tier0 router
-    #edge_cluster = <None>
+    edge_cluster = 726530a3-a488-44d5-aea6-7ee21d178fbc

10. Apply the manifest files

kubectl apply -f /nsx-container-plugin-operator/deploy/kubernetes/*

You should see both the operator and NCP workloads manifest

root@k8s-test-node:/home/packerbuilt/nsx-container-plugin-operator/deploy/kubernetes# kubectl get po -n nsx-system
NAME                       READY   STATUS    RESTARTS   AGE
nsx-ncp-5666788456-r4nzb   1/1     Running   0          4h31m
nsx-ncp-bootstrap-6rncw    1/1     Running   0          4h31m
nsx-node-agent-6rstw       3/3     Running   0          4h31m
root@k8s-test-node:/home/packerbuilt/nsx-container-plugin-operator/deploy/kubernetes# kubectl get po -n nsx-system-operator
NAME                               READY   STATUS    RESTARTS   AGE
nsx-ncp-operator-cbcd844d4-tn4pm   1/1     Running   0          4h31m

Pods should be transitioning to running state, and loadbalancer services will be facilitated by NSX

root@k8s-test-node:/home/packerbuilt/nsx-container-plugin-operator/deploy/kubernetes# kubectl get svc
NAME            TYPE           CLUSTER-IP     EXTERNAL-IP     PORT(S)        AGE
kubernetes      ClusterIP      10.43.0.1      <none>          443/TCP        4h34m
nginx-service   LoadBalancer   10.43.234.41   172.16.102.24   80:31848/TCP   107m
root@k8s-test-node:/home/packerbuilt/nsx-container-plugin-operator/deploy/kubernetes# curl 172.16.102.24
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
    body {
      ......
    }

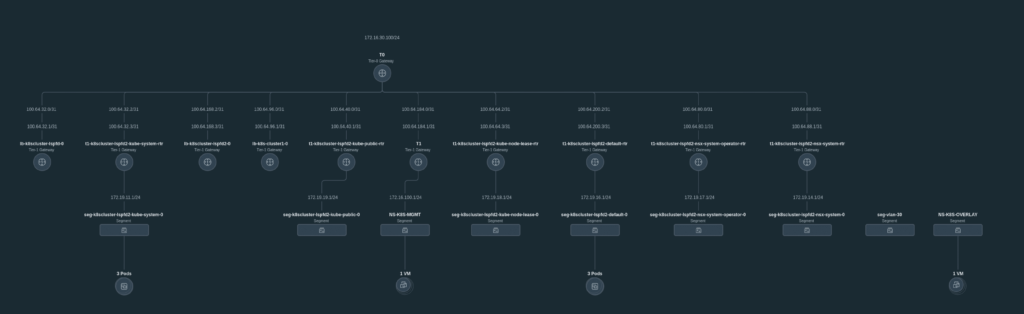

The end result is a topology where every namespace has its own T1 router, advertised to T0:
