Homelab – Nested ESXi with NSX and vSAN

The Rebuild

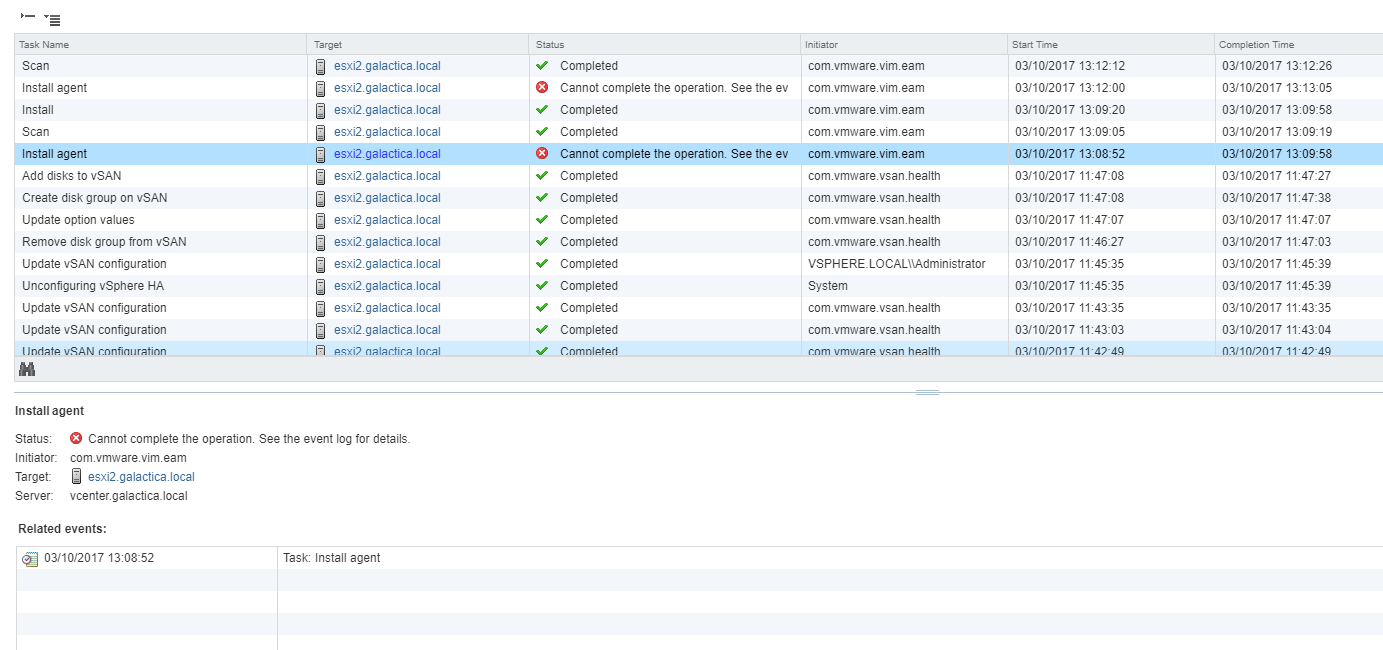

I decided to trash and rebuild my nested homelab to include both NSX and vSAN. When I attempted to prepare the hosts for NSX I received the following message:





I’ve not had this issue before so I conducted some research. I found a lot of blog posts / comments / KB articles linking this issue to VUM. For example : https://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2053782

However, after following the instructions I couldn’t set the “bypassVumEnabled” setting. Nor could I manually install the NSX vibs and was presented with the following:



[root@ESXi4:~] esxcli software vib install -v /vmfs/volumes/vsanDatastore/VIB/vib20/esx-nsxv/VMware_bootbank_esx-nsxv_6.5.0-0.0.6244264.vib –force
[LiveInstallationError]
Error in running [‘/etc/init.d/vShield-Stateful-Firewall’, ‘start’, ‘install’]:
Return code: 1
Output: vShield-Stateful-Firewall is not running
watchdog-dfwpktlogs: PID file /var/run/vmware/watchdog-dfwpktlogs.PID does not exist
watchdog-dfwpktlogs: Unable to terminate watchdog: No running watchdog process for dfwpktlogs
ERROR: ld.so: object ‘/lib/libMallocArenaFix.so’ from LD_PRELOAD cannot be preloaded: ignored.
Failed to release memory reservation for vsfwd
Resource pool ‘host/vim/vmvisor/vsfwd’ release failed. retrying..
Resource pool ‘host/vim/vmvisor/vsfwd’ release failed. retrying..
Resource pool ‘host/vim/vmvisor/vsfwd’ release failed. retrying..
Resource pool ‘host/vim/vmvisor/vsfwd’ release failed. retrying..
Resource pool ‘host/vim/vmvisor/vsfwd’ release failed. retrying..
Set memory minlimit for vsfwd to 256MB
ERROR: ld.so: object ‘/lib/libMallocArenaFix.so’ from LD_PRELOAD cannot be preloaded: ignored.
Failed to set memory reservation for vsfwd to 256MB
ERROR: ld.so: object ‘/lib/libMallocArenaFix.so’ from LD_PRELOAD cannot be preloaded: ignored.
Failed to release memory reservation for vsfwd
Resource pool ‘host/vim/vmvisor/vsfwd’ released.
Resource pool creation failed. Not starting vShield-Stateful-Firewall

It is not safe to continue. Please reboot the host immediately to discard the unfinished update.
Please refer to the log file for more details.
[root@ESXi4:~]

In particular I was intrigued by the “Failed to release memory reservation for vsfwd” message. I decided to increase the memory configuration of my ESXi VM’s from 6GB to 8GB and I was then able to prepare the hosts from the UI.

TLDR; If you’re running  ESXi 6.5, NSX 6.3.3 and vSAN 6.6.1 and experiencing issues preparing hosts for NSX, increase the ESXi memory configuration to at least 8GB.

2 Comments

  1. Brad

    Hi
    Can you elaborate on Increase the ESXi memory configuration to at least 8GB? I recall VMware remove the function with ESXi 6.5?
    Thanks,
    Brad

    • David

      Hi Brad,

      For this environment and its configuration 8GB was the minimum to purely get it functioning. ESXi 6.5 itself requires a minimum of 4GB.

      vSAN has no hard requirement IIRC, but it depends on the number of disks, disk groups etc. NSX adds an overhead aswell. A combination of all these resulted in my environment requiring 8GB each on the ESXi nodes.
